| Designation | Dimensions | Basic load ratings | Limiting speeds | Bearing frictional torque MRL Nm | Rigidity axial caL N/µm | Tilting rigidity ckL Nm/ mrad | Mass moment of inertia3) Mm kg · cm2 | Axial runout6) µm | Mass m =kg | ||||||||||||||||||
| axial | radial | ||||||||||||||||||||||||||
| dyn.Ca | stat. C0a | dyn.Cr | stat. C0r | nG oil | nG grease | ||||||||||||||||||||||
| d | D | H | H1 | H2 | H3 | C | D1 | D2 | D3 | B | B1 | B2 | r min. | r1 min. | N | N | N | N | min–1 | min–1 | |||||||

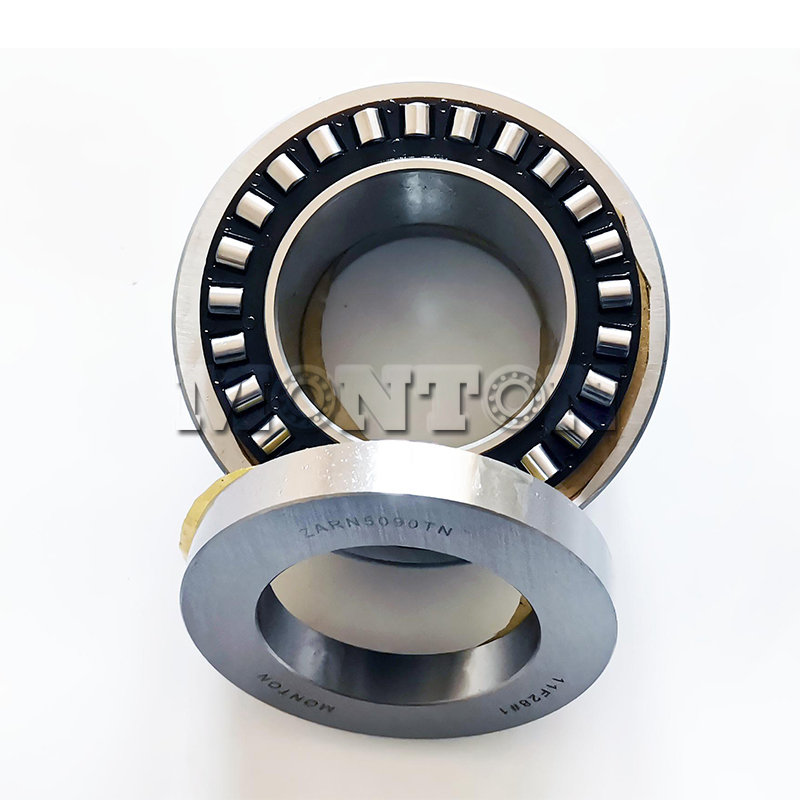

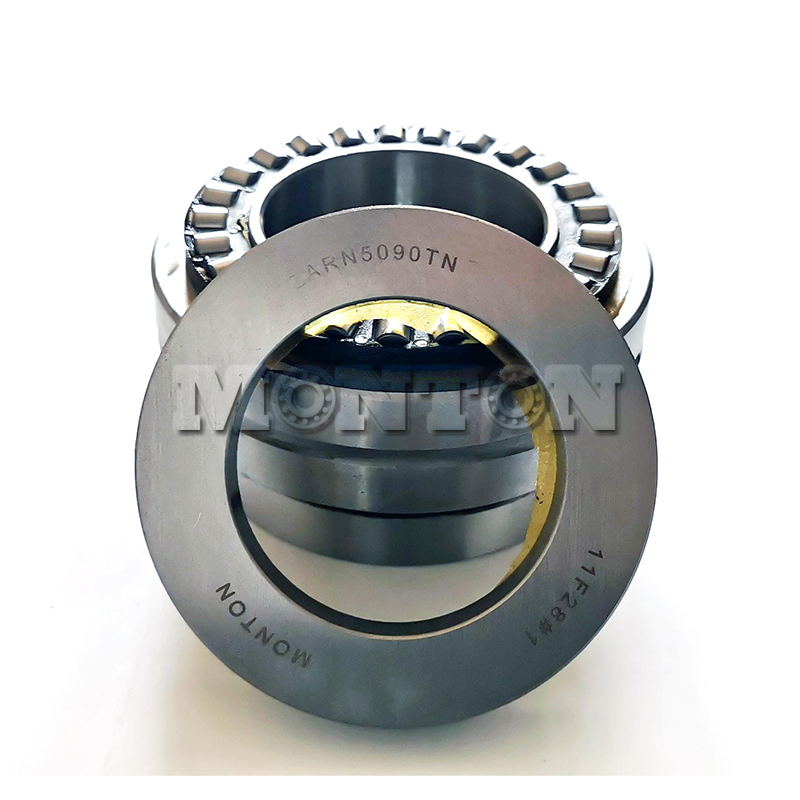

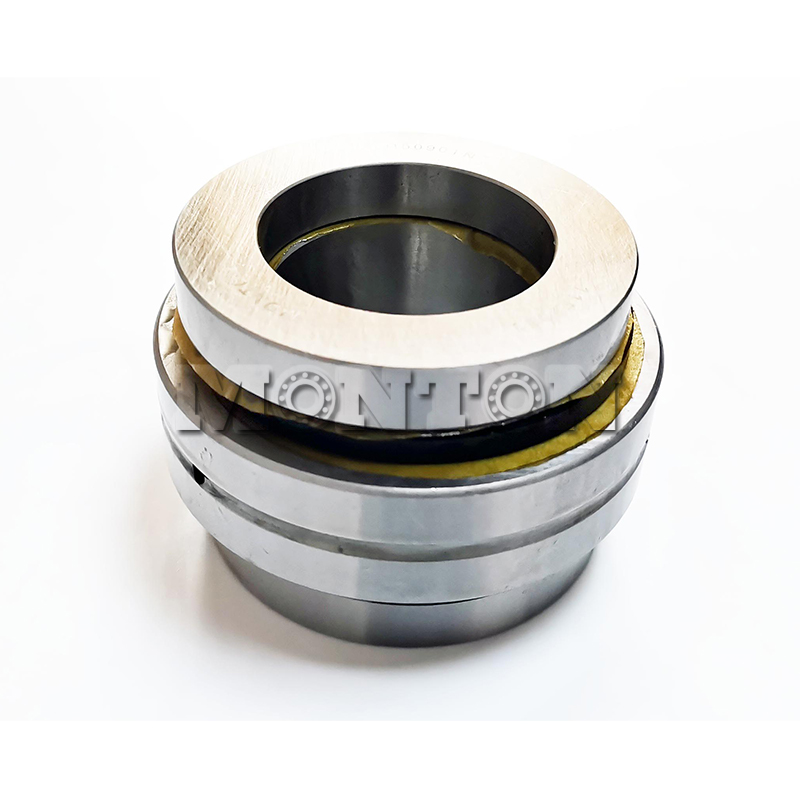

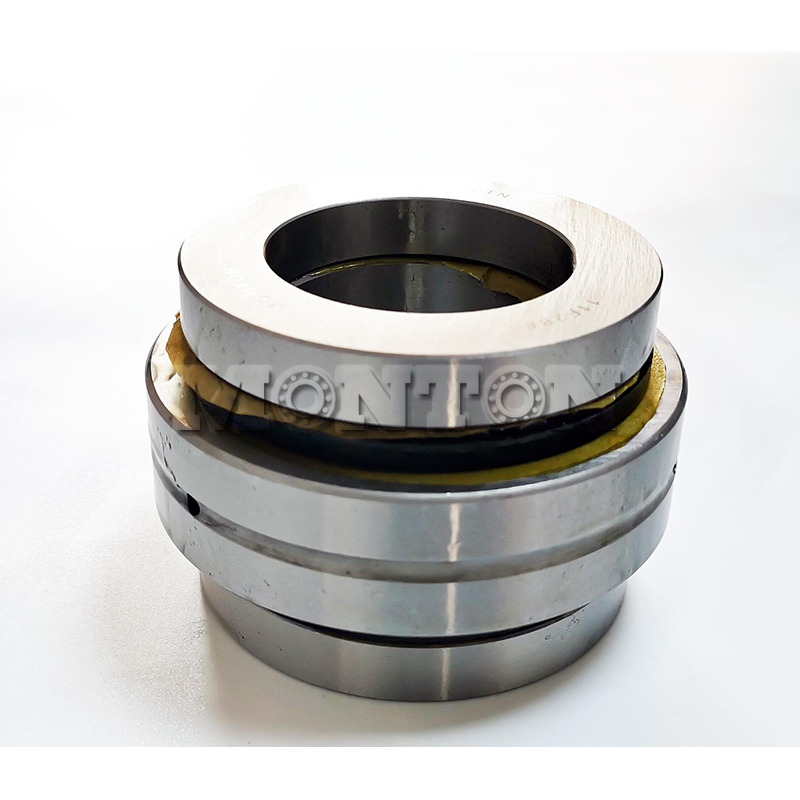

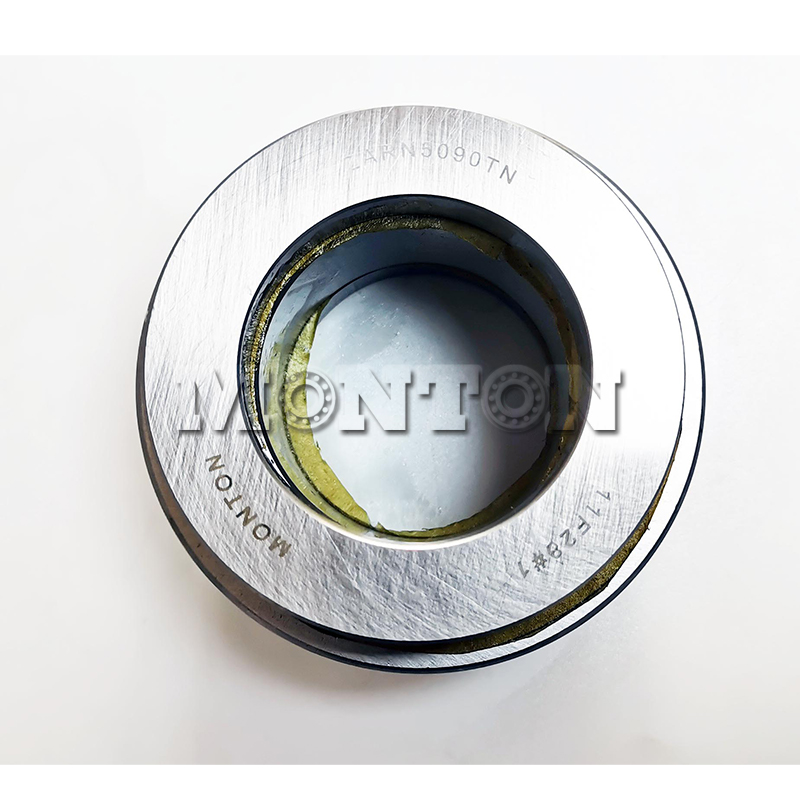

| ZARN5090-TV | 50 | 90 | 60 | 42.5 | – | – | 25 | 78 | – | – | 11.5 | – | – | 0.3 | 0.6 | 90,000 | 300,000 | 40,000 | 82,000 | 3,600 | 1,200 | 2.2 | 4,800 | 2,470 | 8.42 | 1 | 1.43 |
| ZARN5090-L-TV | 50 | 90 | – | – | 78 | 60.5 | 25 | 78 | 60 | 78 | 11.5 | 29.5 | 12 | 0.3 | 0.6 | 90,000 | 300,000 | 40,000 | 82,000 | 3,600 | 1,200 | 2.2 | 4,800 | 2,470 | 10.46 | 1 | 1.78 |
