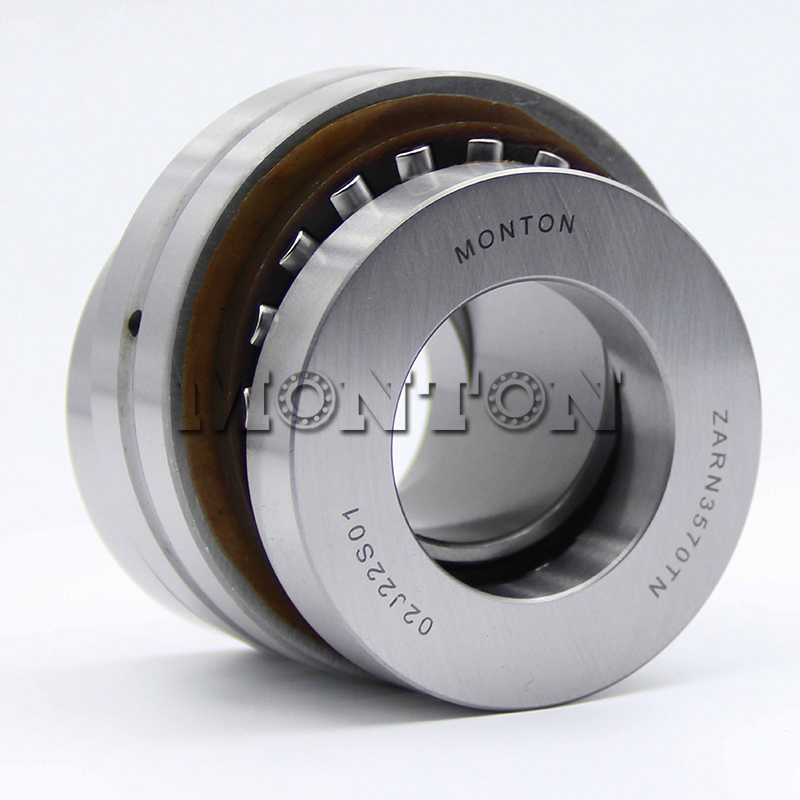

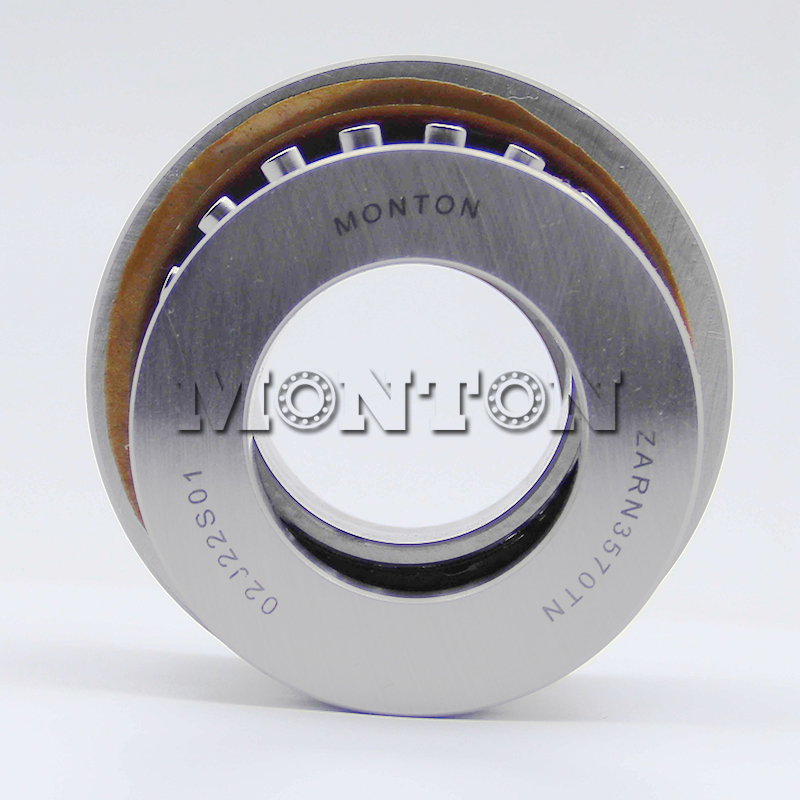

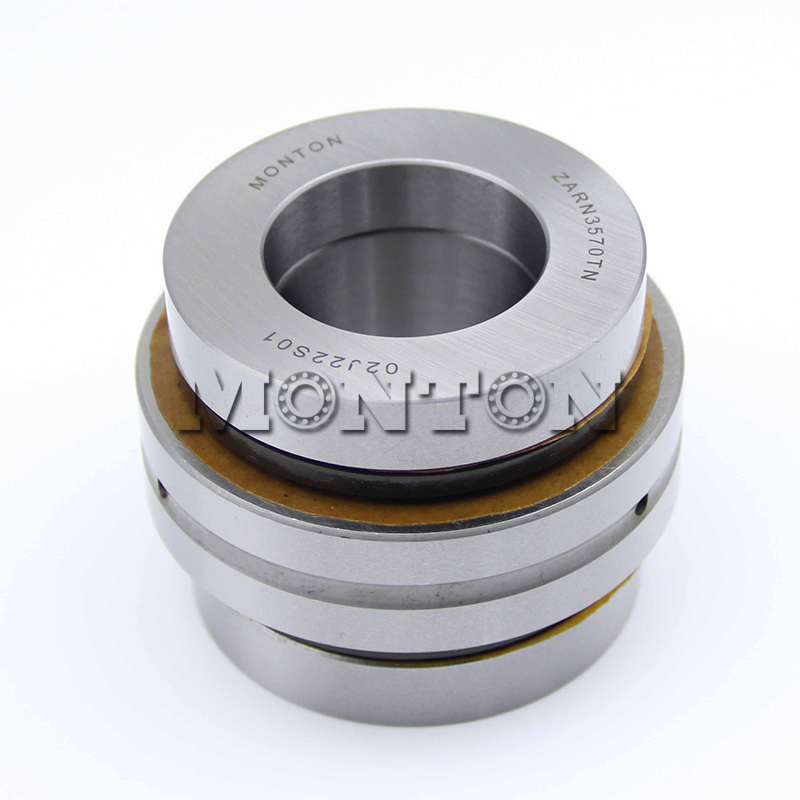

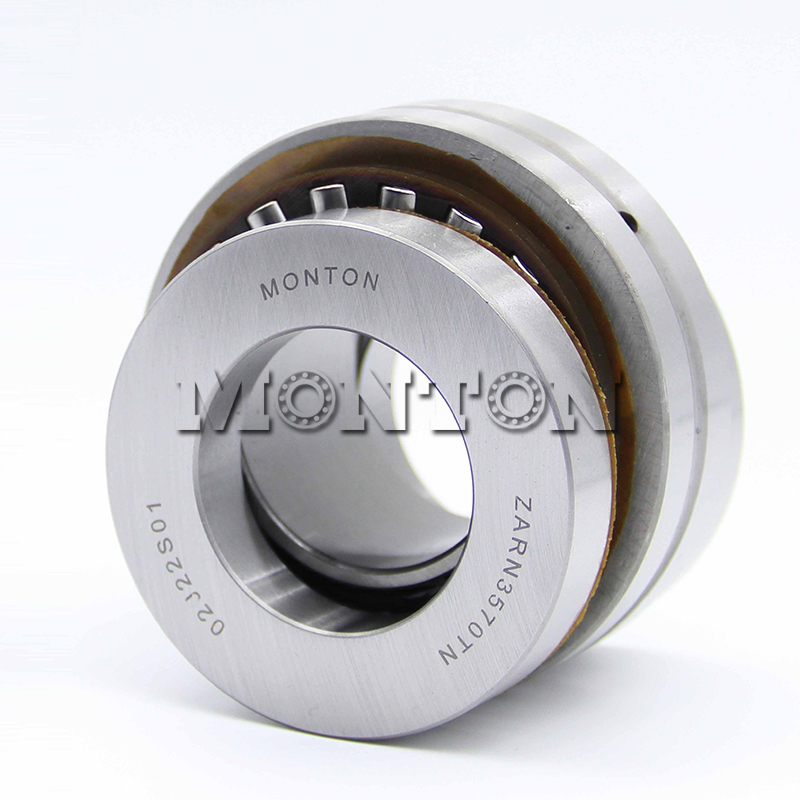

| Name | Needle roller/axial cylindrical roller bearing |
| Seires | ZARN series |
| Brand | MONTON |
| Model | ZARN3570-TN-P4 |
| d | 35mm |
| D | 70mm |
| B | 54mm |
| C0r | 56,000 N |
| C0a | 148,000 N |
| Cr | 26,000 N |
| Cor | 47,000 N |
| Cua | 12,900 N |
| Cur | 6,800 N |
| nG Oil | 4,800 1/min |
| nG Grease | 1,700 1/min |
| Weight | 0.871 kg |
| Operating temperature | -30 °C-120°C |
| Bearing friction torque | 0.9 Nm |
| Rigidity axial | 2,600 N/µm |
| Tilting stiffness | 740 Nm/mrad |
| Tightening torque nut | 40 Nm |
| Quality standard | ISO9001: 2000/SGS RoHS ect. |
| Package | single box |
| Original | Luoyang |
| Service | OEM |
| Delivery | Stock |
| Application | Machine tools Handling system inspection and measuring machines small machining equipment medical and laboratory equipment machines in precision engineering and electronic component manufacture simplification of the bearing arrangement through the use of complete units. |
