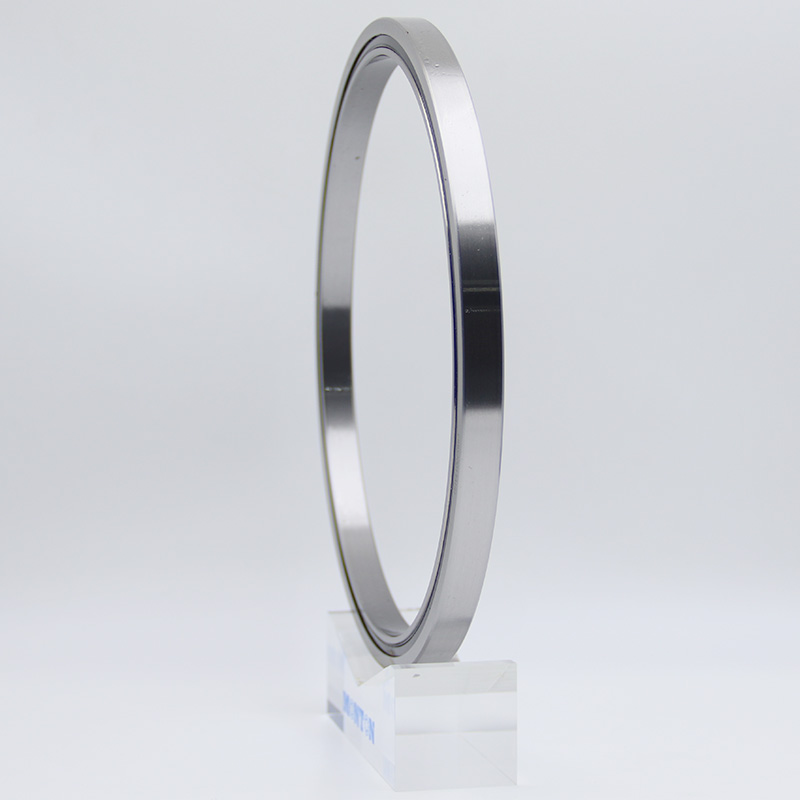

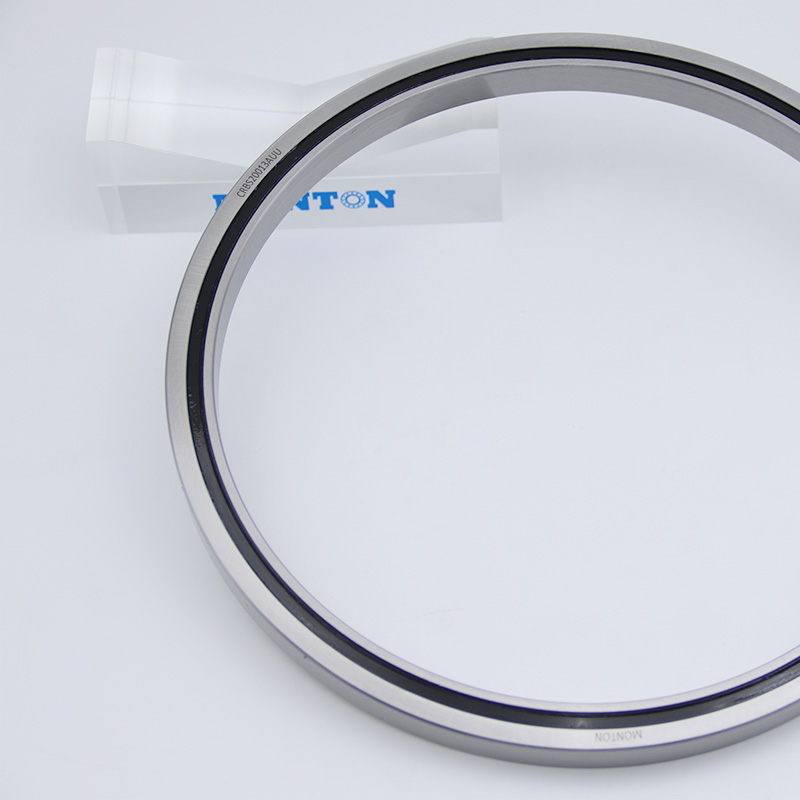

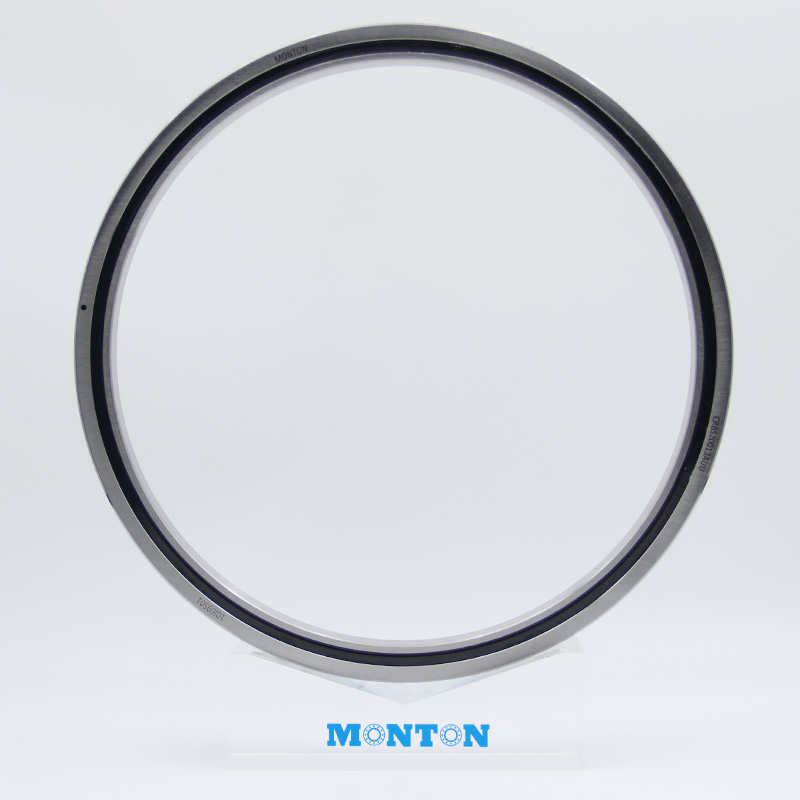

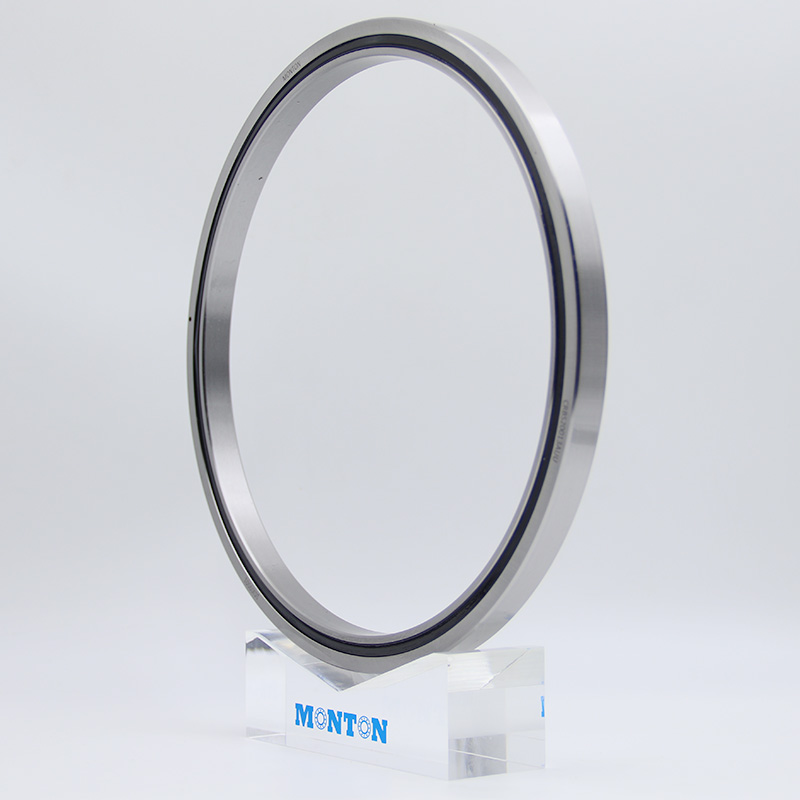

CRBS20013AUU Crossed Roller Bearing

Name

Crossed Roller Bearing

Seires

CRBS series

Brand

MONTON

Model

CRBS20013AUU

d

200mm

D

226mm

B

13mm

Ring Material

Gcr15

Seal type

Double seals

Cage Material

Spacer

Load rating  C

23.3kN

Load rating  Co

51.6kN

Weight

0.78KG

Design Structure

Crossed roller

Precision

P4,P5 or according to requirement

Clearance

CC0

Quality standard

ISO9001: 2000/SGS RoHS ect.

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Stock

Application

Industrial robot joints
Precision Turntable
Automation Equipment


The CRBS20013AUU crossed roller bearing produced by MONTON adopts a thin-walled structure with an integrated outer and inner ring (with a height of only 13mm) design. The internal rollers are arranged at 90° in a cross pattern, and synchronous movement is achieved through a precise cage. This design endows it with the characteristics of multi-directional load-bearing capacity, high rigidity and high precision. It is applicable to the 2nd to 4th axes of 6-axis industrial robots, replacing the traditional combination of "bearings + harmonic reducers" to reduce transmission clearance.
