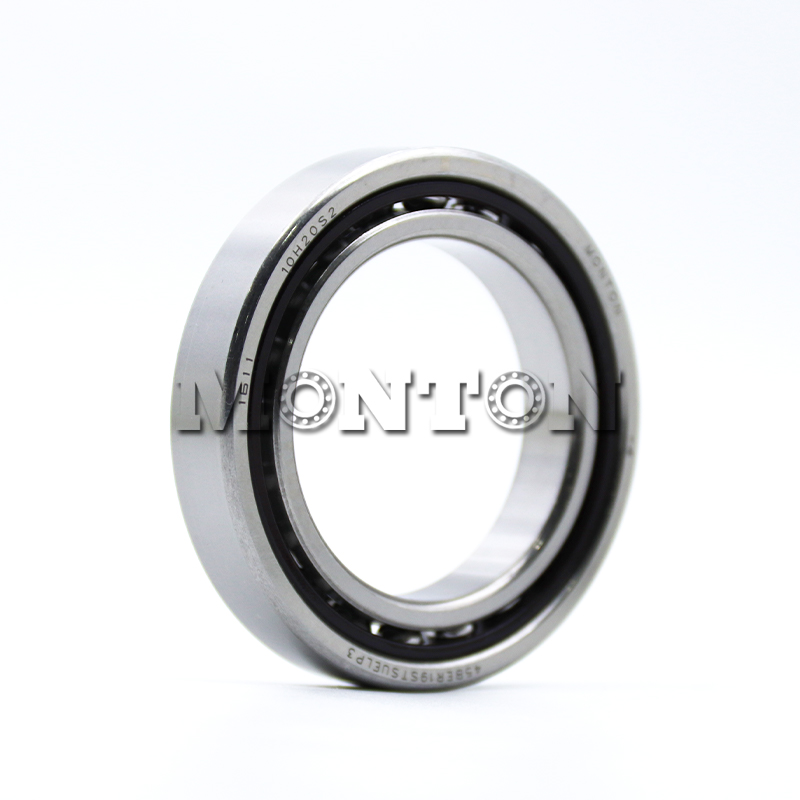

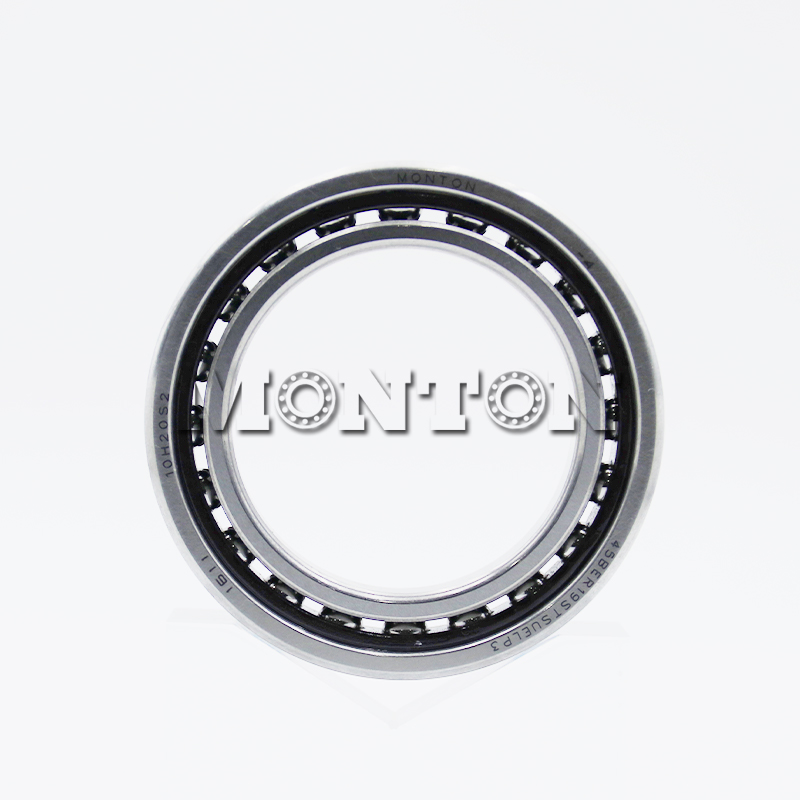

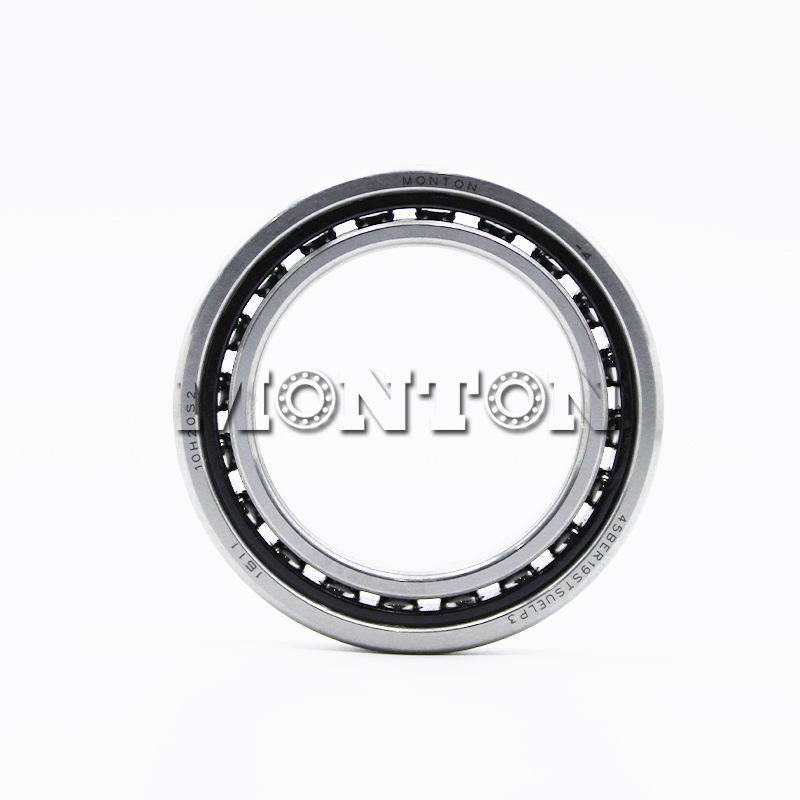

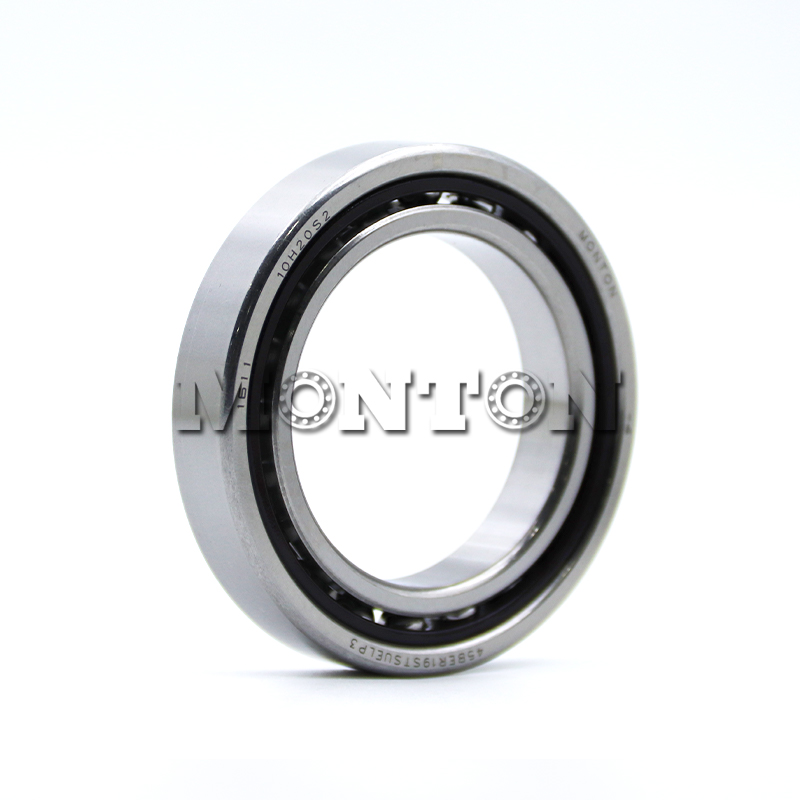

| Name | Angular contact ball bearing | |
| Seires | BER Series | |
| Brand | MONTON | |
| Model | 45BER19STSUELP3 | |
| d | 45mm | |
| D | 68mm | |
| B | 12mm | |
| Ring Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 | |
| Cage Material | Nylon/phenolic resin | |
| Load rating (kN) | Cr | 11.6kN |
| Cor | 8.35kN | |
| Speeds (min–1) | Grease | 21300 |
| Oil | 30100 | |
| Sealed | as customer requested | |
| Weight | 0.125KG | |
| Bearing Arrangement | U/DB/DT/TBT/QBC/DU/QU ect. | |
| Design Structure | Angular contact | |
| Precision | P4,P5 or as customer requested | |
| Vibration | ZV1, ZV2, ZV3, or as customer requested | |
| Clearance | C0, C2, C3, or as customer requested | |
| Quality standard | ISO9001: 2000/SGS | |
| Package | single box | |
| Original | Luoyang | |
| Service | OEM | |
| Delivery date | Accordingly | |
| Application | Spindle,Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery,air compressor,shippiing,logistic,areospace | |
