Designation :ZKLN1034-2RS
Mass(kg) :0.1

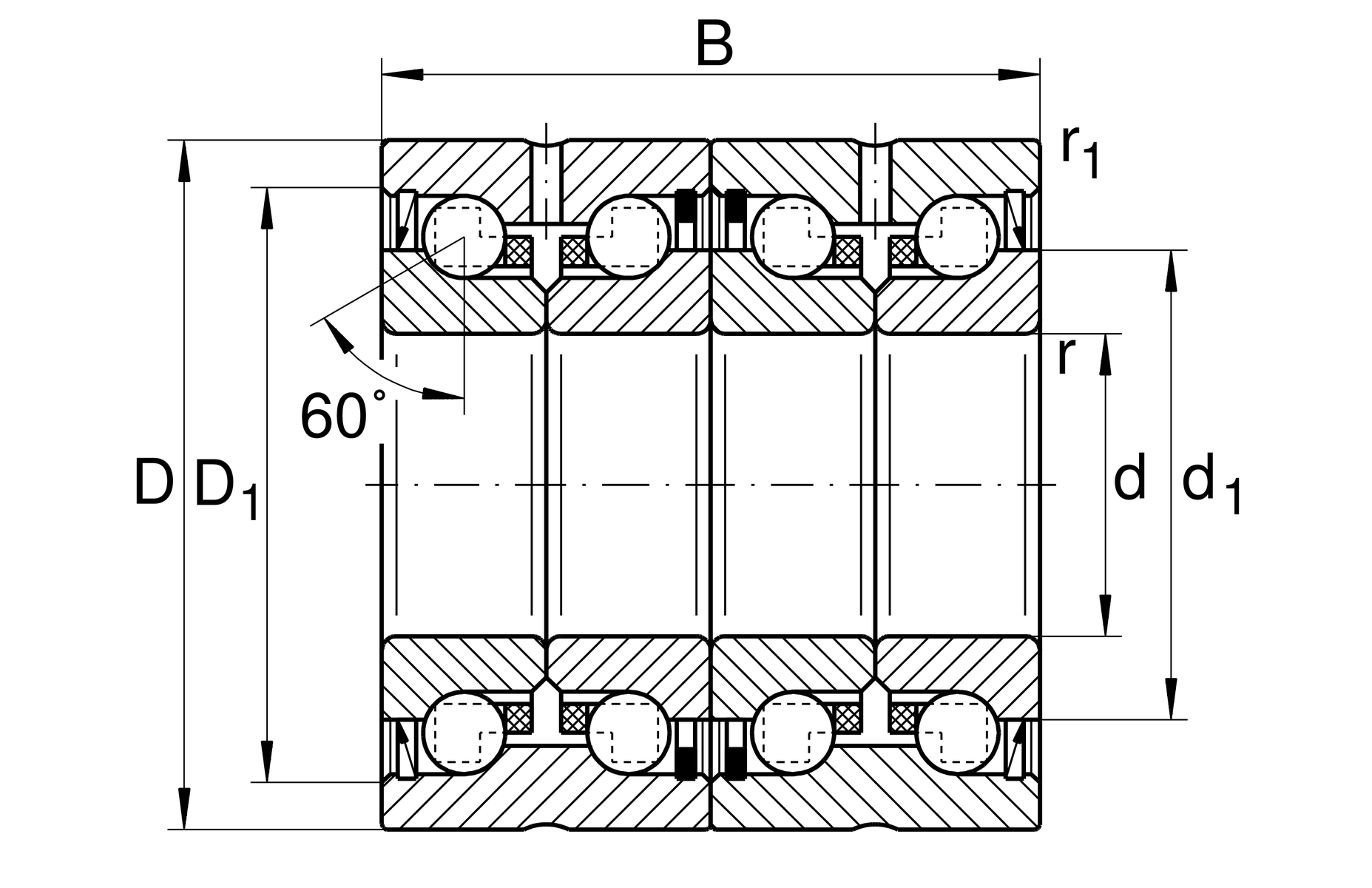

Dimensions(mm)
d :10
D :34
B :20
d1 :21
r min. :0.3
r1 min. :0.6
Mounting dimensions(mm)
Da max. :28
da min. :14
Basic load ratings axial(N)
Ca :14700
Coa :18800
Fatigue limit load
Cu N :1110
Limiting speed
nG grease min–1 :10900
Thermally safe operating speed
nP min–1 :4600
Bearing frictional torque MR Nm :0.12
Rigidity axial caL N/µm :325
Tilting rigidity ckL :25
Mass moment of inertia Mm :0.029
Axial runout µm :2
Recommended INA precision locknut
For radial locking :ZM10
For axial locking :–
Tightening torque MA Nm :6
Required locknut force axial N :4891
