  • ZKLF Series Bearings for screw drives
  • ZKLF Series Bearings for screw drives

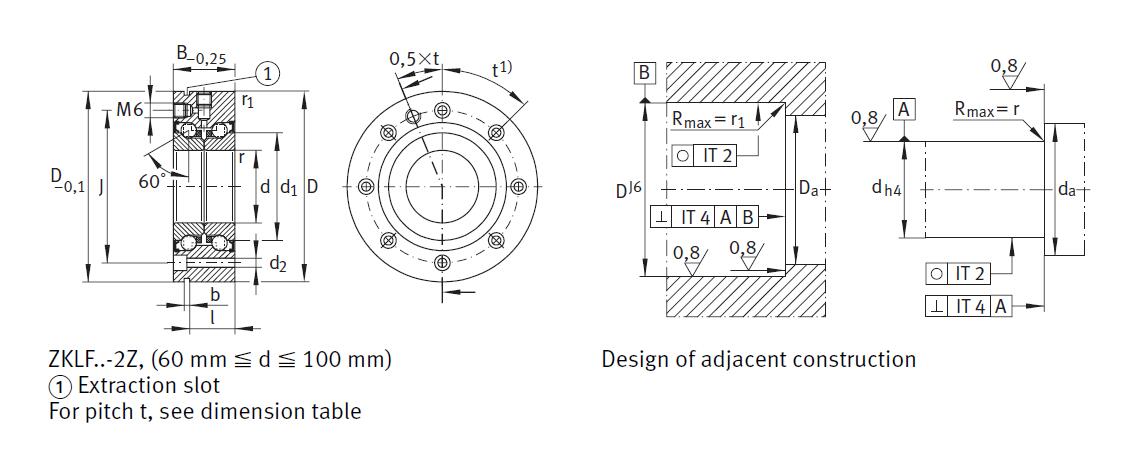

Dimension and Parameters

Designation :ZKLF100230-2Z
Mass(kg) :17.6
Dimensions(mm)
d :100
D :230
B :85
d1 :146
r min. :0.6
r1 min. :0.6
J :200
d2 :14
b :3
I :73
Pitch n×t :12×30°
Mounting dimensions(mm)
Da max. :175
da min. :130
t1 :0.4
Fixing screws DIN EN ISO 4762 10.9
Size :M12
na×ta :12×30°
Basic load ratings axial(N)
Ca :295000
Coa :790000
Fatigue limit load
Cu N :29000
Limiting speed
nG grease min–1 :2900
Thermally safe operating speed
nP min–1 :2000
Bearing frictional torque MR Nm :3
Rigidity axial caL N/µm :2450
Tilting rigidity ckL :8200
Mass moment of inertia Mm :185
Axial runout µm :3
Recommended INA precision locknut
For radial locking :
For axial locking :AM100
Tightening torque MA Nm :500
Required locknut force axial N :52000
