  • Crossed roller slewing bearing with external gear
  • Crossed roller slewing bearing with external gear

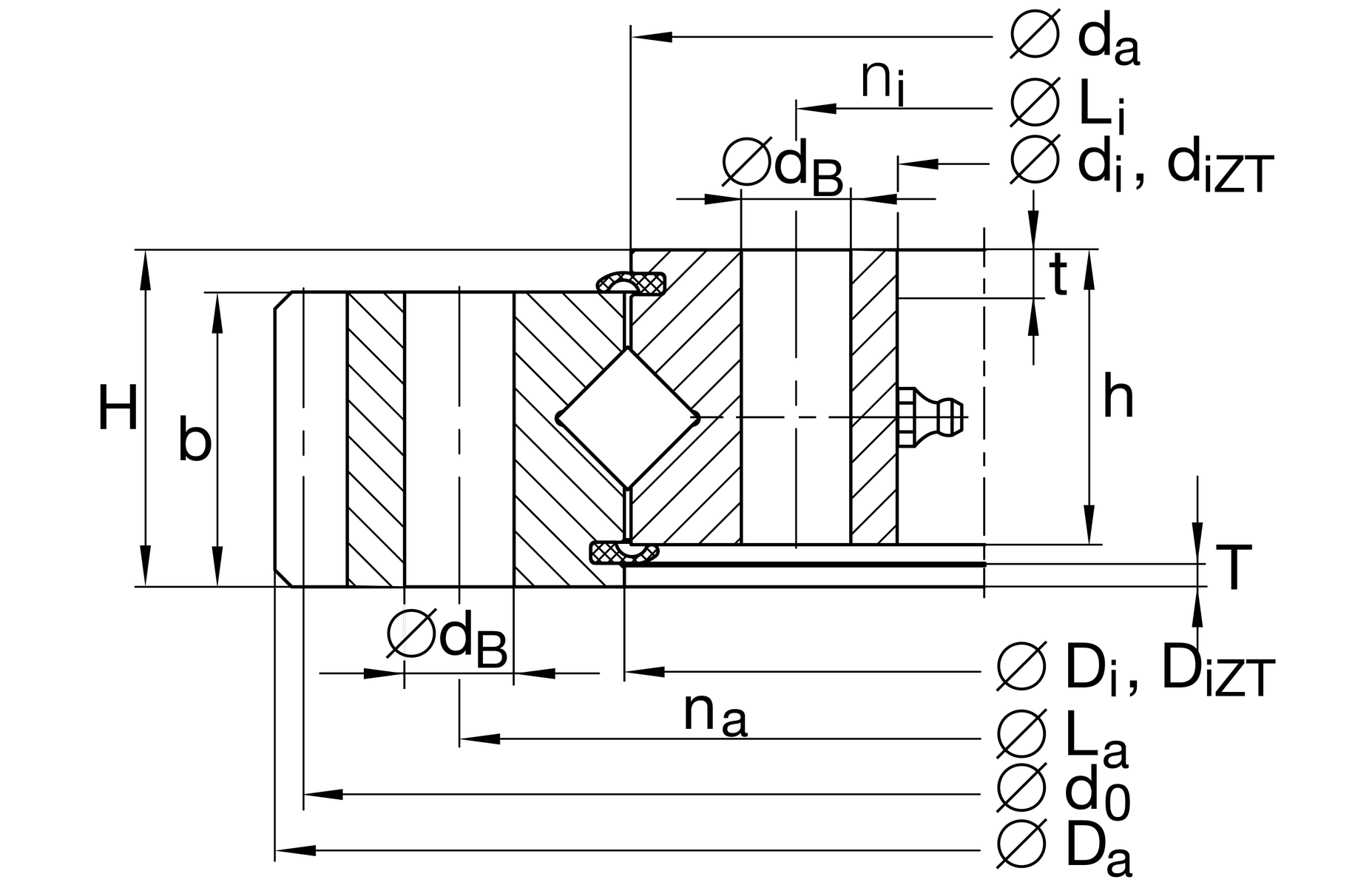

Dimension and Parameters

Bearing No. :XOU25/310
INA No. :
LYC No. :
Dimensions(mm)
Da :403.5
D :
di :215
H :90
Installation size(mm)
La :358
Li :245
n1 :20
n2 :19
φ1 :M16
φ2 :φ17
Structure size(mm)
D1 :382.5
d :
b :40
h :8
B :82
C :82
Di :312
Da :308
Tooth parameter(mm)
m :4.5
z :88
do :396
x :
Rated axial static load (KN) :1000
Weight(kg) :49.2
