Bearing Model
Model :XIU30/713
INA Model :XI300713N

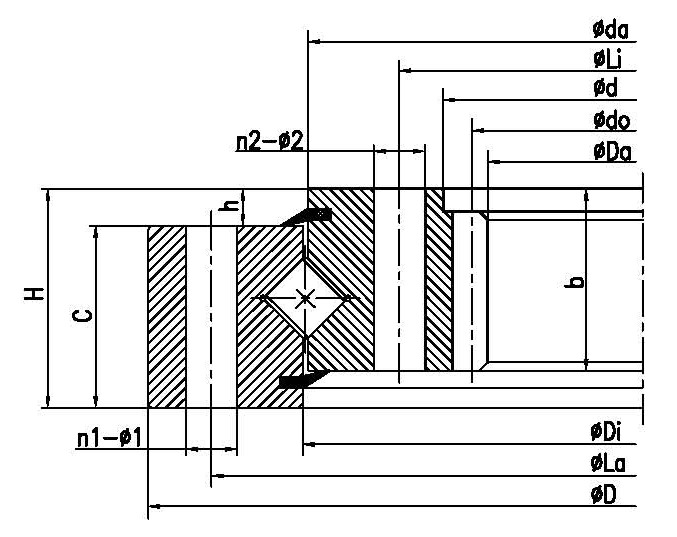

Boundary dimensions (mm)
Da :560
D :817
di :
H :80
Bolt hole diameter (mm)
Li :785
n1 :640
n2 :52
φ1 :52
φ2 :18
La :18
Structure dimensions (mm)
D1 :
d :
b :73
h :7
B :73
C :73
Di :714
da :712
Gear Parameters (mm)
m :10
z :58
do :580
x :
Basic load ratinge
Coa (KN) :1980
Weight
(KG) :130
