Part Number:
d:
D:
B:
  • Four point contact ball slewing bearing (with outer flange and internal gear type)
  • Four point contact ball slewing bearing (with outer flange and internal gear type)

Dimension and Parameters

Bearing
Model :SLIR20/844Y2
INA Model :VLI200844N
Rothe Erde Model :
TG Model :

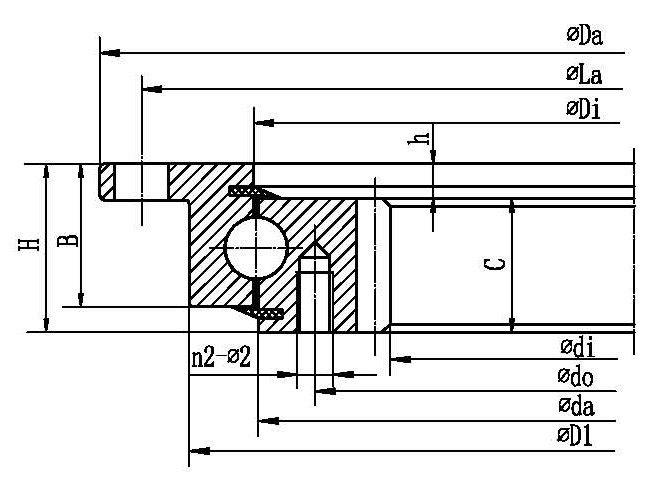

Boundary dimensions (mm)
Da :948
D :
di :736
H :56
Bolt hole diameter (mm)
La :920
Li :805
n1 :14
n2 :20
φ1 :18
φ2 :M12
Structure dimensions (mm)
D1 :
d :
b :44.5
h :8.5
B :44.5
C :47.5
Di :845.5
da :842.5
Gear Parameters (mm)
m :8
z :94
do :752
x :
Basic load ratinge
Coa (KN) :600
Weight (KG) :61.5
