Part Number:
d:
D:
B:
  • Stainless Steel Four Point Angular Contact Ball Bearing
  • Stainless Steel Four Point Angular Contact Ball Bearing
  • Stainless Steel Four Point Angular Contact Ball Bearing
  • Stainless Steel Four Point Angular Contact Ball Bearing

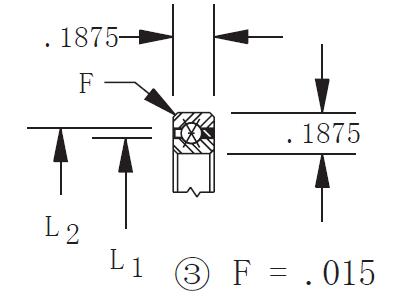

Dimension and Parameters

Bearing Number :SA035XP0
Dimensions in Inches
Bore :3.500
Outside Dia. :4
L1 :3.686
L2 :3.814
Capacities(lbs)
Radial
Dynamic :1,140
Static :701
Axial
Dynamic :2,850
Static :1,110
Torque(in-lbs)
Static :2,130
Dynamic :986
Weight(lbs) :0.18
