Part Number:
d:
D:
B:
  • K Series Needle roller and cage assemblies
  • K Series Needle roller and cage assemblies

Dimension and Parameters

Bearing Designation
Current Code :K5X8X10TN
Original Code :39241/5
Shaft Diameter(mm) :5
Weight(Kg) :0.9

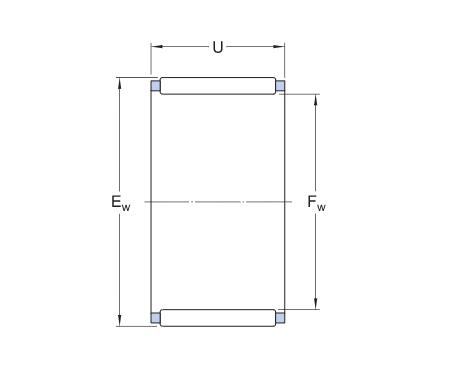

Boundary Dimensions(mm)
Fw :5
D :8
C :10
Basic Load Rating(N)
Dynamic :2800
Static :2450
Limiting Speed(rpm)
Oil :37000
