Metric Series Four Point Angular Contact Ball Bearing

J05008XP0

Send Inquiry
PDF
Printable Page
Save to Favorites
  • Metric Series Four Point Angular Contact Ball Bearing
  • Metric Series Four Point Angular Contact Ball Bearing
  • Metric Series Four Point Angular Contact Ball Bearing
  • Metric Series Four Point Angular Contact Ball Bearing
  • Metric Series Four Point Angular Contact Ball Bearing

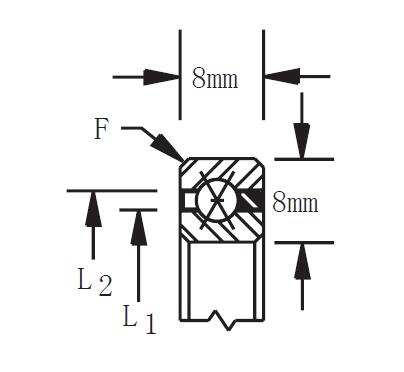

Dimension and Parameters

Bearing Number :J05008XP0
Dimensions(mm)
Bore :50
Outside Dia. :66
L1 :56.55
L2 :59.42
Capacities（kg）
Radial
Dynamic :555
Static :460
Thrust
Dynamic :1389
Static :666
Torque（N-m）
Static :158
Dynamic :98
Weight（kg） :0.08
