Inch Tapered Roller Bearing

PDF

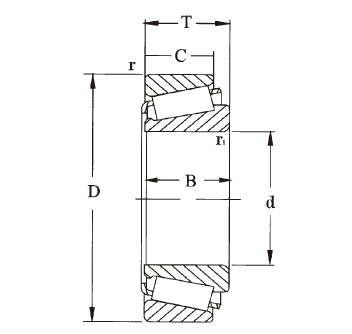

select	Inquiry	Bearing No.	Boundary dimensions（mm）							Basic load ratings(kN)
select	Inquiry	Bearing No.	d	B	R	D	C	r	T	Dynamic(Cr)	Static(Cor)
		25580	44.45	25.4	0.8
		25522				83.058	19.114	3.5
		25520				82.931	19.05	3.5
		24780/20	41.275	23.02	0.8	76.2	17.462	3.5	22.225	65	80.5
		24780	41.275	23.02	0.8
		18790/20	50.8	17.462	1.5	85	13.495	3.5	17.462	49.5	65
		18790	50.8	17.462	1.3
		18720				85	13.495	3.5
		18690	46.038	17.462	1.5
		18620				79.375	13.495	2.8
		18590/20	41.275	17.462	1.5	73.025	12.7	3.5	16.667	46	55.5
		18590	41.275	17.462	1.5
		18520				73.025	12.7	3.5
		1780	25.4	19.837	1.3
		15245				62	14.288	0.8
		15243				61.912	14.288	0.8
		15126/245	31.75	20.638	1.3	62	14.288	0.8	19.05	46.5	54
		15126	31.75	20.638	1.3
		15125/245	31.75	20.638	1.3	62	14.288	3.5	19.05	46.5	54
		15125	31.75	20.638	1.3
		15123/245	31.75	19.05	1.3	62	14.288		18.161	46.5	54
		15123	31.75	19.05	1.3
		15106/245	26.988	20.638	1.3	62	14.288	0.8	19.05	46.5	54
		15106	26.988	20.638	1.3
		15103/245	26.157	20.638	1.3	62	14.288	0.8	19.05	46.5	54
		15103	26.157	20.638	1.3
		15101/243	25.4	20.638	2	61.912	14.288	0.8	19.05	46.5	54
		15101	25.4	20.638	2
		15100/245	25.4	20.638	1.3	62	14.288	3.5	19.05	46.5	54
		15100	25.4	20.638	1.3
