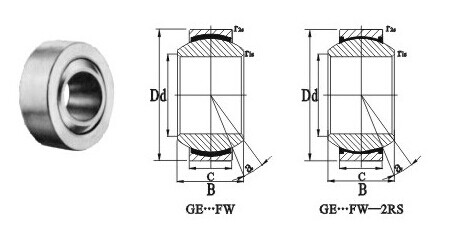

GE...FW spherical plain bearing

PDF

select	Inquiry	Designation	Dimensions (mm)							α· ≈	Weight (kg)
select	Inquiry	Designation	d	D	B	C	dk	r1s min	r2s min	α· ≈	Weight (kg)
		GE80FW-2RS	80	130	75	50	1	1	695	14	3.5
		GE70FW-2RS	70	120	70	45	1	1	570	16	2.9
		GE60FW-2RS	60	105	63	40	1	1	440	17	2
		GE50FW-2RS	50	90	56	36	0.6	1	345	17	1.4
		GE45FW-2RS	45	75	43	28	0.6	1	220	15	0.68
		GE40FW-2RS	40	68	40	25	0.6	1	180	17	0.52
		GE35FW-2RS	35	62	35	23	0.6	1	140	16	0.39
		GE30FW-2RS	30	55	32	20	0.6	0.6	112	17	0.29
		GE25FW-2RS	25	47	28	18	0.6	0.6	65.5	17	0.19
		GE20FW-2RS	20	42	25	16	0.6	0.6	51	17	0.15
		GE17FW-2RS	17	35	20	12	0.3	0.3	31.5	19	0.078
		GE15FW-2RS	15	30	16	10	0.3	0.3	22.4	16	0.046
		GE12FW	12	26	15	9	0.3	0.3	18	18	0.033
		GE10FW	10	22	12	7	0.3	0.3	11	18	0.021
		GE8FW	8	19	11	6	0.3	0.3	8.6	21	0.014
		GE6FW	6	16	9	5	0.3	0.3	5.8	21	0.008
		GE5FW	5	16	9	5	0.3	0.3	5.8	21	0.006
		GE4FW	4	14	7	4	0.3	0.3	3.6	20	0.005
		GE90FW-2RS	90	150	85	55	1	1	865	15	5.4
		GE100FW-2RS	100	160	85	55	1	1	930	14	5.9
