Designations
cylindrical bore :BS2-2309-2RS/VT143
tapered bore :–
Dimensions
d
mm :45
D
mm :100
B
mm :42
Basic load ratings
dynamic C
KN :190
static C0
KN :183
Fatigue load limit
Pu
KN :19.6
Speed ratings
Reference speed
r/min :–
Limiting speed
r/min :3400

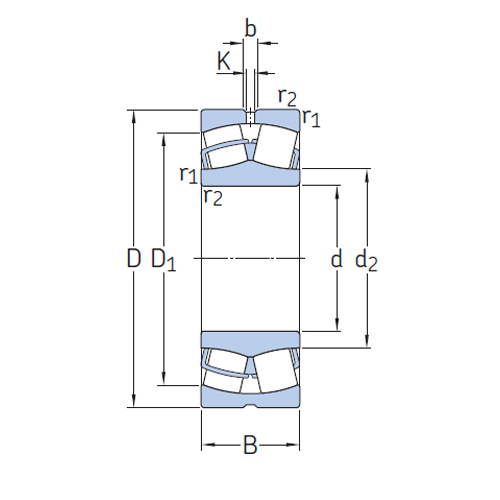

Install Dimensions
d2 ≈ :55
D1 ≈ :88.5
b :6
K :3
r1,2 min :1.5
Abutment and illet dimensions
da min
mm :54
da max :55
Da max :91
ra max :1.5
Calculation factors
e :0.37
Y1 :1.8
Y2 :2.7
Y0 :1.8
Permissible acceleration for oil lubrication
rotational
m/s2 :–
linear :–
Mass
kg :1.6
