  • TAC/BS series Ball Screw Support Bearings
  • TAC/BS series Ball Screw Support Bearings

Dimension and Parameters

Bearings
BS :BS1574
TAC :15TAC47C

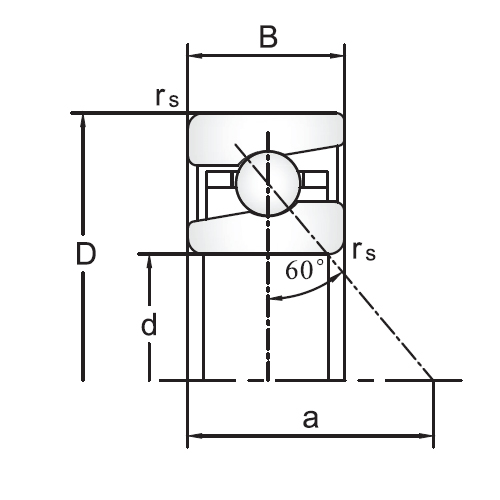

Demension (mm)
d :15
D :47
B :15
r Min :1
r1 Max :0.6
Load Ca (N) :23
Rotation (min-1)
Lub. :6900
Oil. :9200
Stiffness (DB,DF) (N)
H :1450
Rigidity (DB,DF) (N/μm)
H :630
Torque (N・m)
H :0.09
Weight
KG :0.146
