Part Number:
d:
D:
B:
  • Large Angular Contact Ball Bearing
  • Large Angular Contact Ball Bearing
  • Large Angular Contact Ball Bearing
  • Large Angular Contact Ball Bearing

Dimension and Parameters

Bearing Designation
Single row :7236 AC
Pairs
DF :DB
DB :DF
Dimensions(mm)
d :180
D :320
B :52
r1 :4
r :1.5
load rating
Single row
Cr :300
C0r :360
action spot
mm
a :59.5
load rating
Pairs
C :485
C0r :725

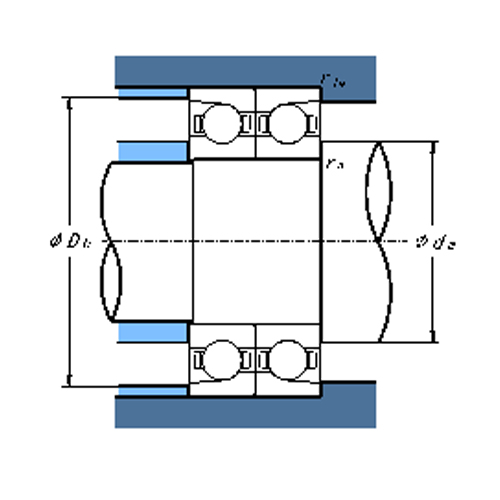

installation dimension
da
min :197
Da
max :303
Db
max :313
ra
max :3
r1a
max :1.5
Weight
Kg
≈ :18
