6900 Series

PDF

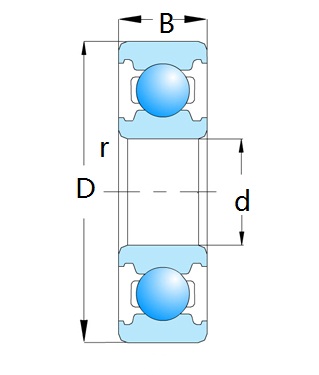

select	Inquiry	Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
select	Inquiry	Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
		6900	10	22	6	0.3	2.7	1.27	30000	36000	0.009
		6901	12	24	6	0.3	2.89	1.46	27000	32000	0.011
		6902	15	28	7	0.3	3.65	2	24000	28000	0.016
		6903	17	30	7	0.3	4.65	2.58	22000	26000	0.018
		6904	20	37	9	0.3	6.4	3.7	19000	23000	0.036
		6905	25	42	9	0.3	7.05	4.55	16000	19000	0.042
		6906	30	47	9	0.3	7.25	5	14000	17000	0.048
		6907	35	55	10	0.6	9.55	6.85	12000	15000	0.074
		6908	40	62	12	0.6	12.2	8.9	11000	13000	0.11
		6909	45	68	12	0.6	13.1	10.4	9000	12000	0.128
		6910	50	72	12	0.6	13.4	11.2	8900	11000	0.132
		6911	55	80	13	1	16	13.3	8200	9600	0.18
		6912	60	85	13	1	16.4	14.3	7600	8900	0.193
		6913	65	90	13	1	17.4	16.1	7000	8200	0.206
		6914	70	100	16	1	23.7	21.2	6500	7700	0.334
		6915	75	105	16	1	24.4	22.6	6100	7200	0.353
		6916	80	110	16	1	24.9	24	5700	6700	0.373
		6917	85	120	18	1.1	32	29.6	5400	6300	0.536
		6918	90	125	18	1.1	33	31.5	5100	6000	0.554
		6919	95	130	18	1.1	33.5	33.5	4800	5700	0.579
		6920	100	140	20	1.1	41	39.5	4500	5300	0.785
		6921	105	145	20	1.1	42.5	42	4300	5100	0.816
		6922	110	150	20	1.1	43.5	44.5	4100	4800	0.849
		6924	120	165	22	1.1	53	54	3800	4400	1.15
		6926	130	180	24	1.5	65	67.5	3500	4100	1.52
		6928	140	190	24	1.5	66.5	71.5	3200	3800	1.62
		6930	150	210	28	2	85	90.5	3000	3500	2.47
		6932	160	220	28	2	87	96	2800	3300	2.61
		6934	170	230	28	2	86	95.5	2600	3100	2.74
		6936	180	250	33	2	110	119	2400	2900	4.76
