6200 Series

PDF

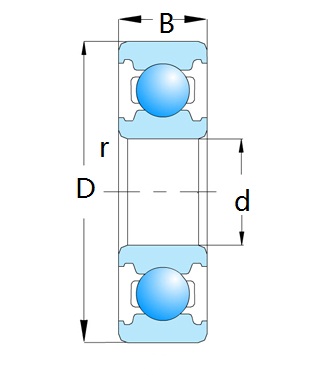

select	Inquiry	Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
select	Inquiry	Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
		6200	10	30	9	0.6	5.1	2.39	25000	30000	0.032
		6201	12	32	10	0.6	6.1	2.75	22000	26000	0.037
		6202	15	35	11	0.6	7.75	3.6	19000	23000	0.045
		6203	17	40	12	0.6	9.6	4.6	18000	21000	0.066
		6204	20	47	14	1	12.8	6.65	16000	18000	0.106
		6205	25	52	15	1	14	7.85	13000	15000	0.128
		6206	30	62	16	1	19.5	11.3	11000	13000	0.199
		6207	35	72	17	1.1	25.7	15.3	9800	11000	0.288
		6208	40	80	18	1.1	29.1	17.8	8700	10000	0.366
		6209	45	85	19	1.1	32.5	20.4	7800	9200	0.398
		6210	50	90	20	1.1	35	23.2	7100	8300	0.454
		6211	55	100	21	1.5	43.5	29.2	6400	7600	0.601
		6212	60	110	22	1.5	52.5	36	6000	7000	0.783
		6213	65	120	23	1.5	57.5	40	5500	6500	0.99
		6214	70	125	24	1.5	62	44	5100	6000	1.07
		6215	75	130	25	1.5	66	49.5	4800	5600	1.18
		6216	80	140	26	2	72.5	53	4500	5300	1.4
		6217	85	150	28	2	83.5	64	4200	5000	1.79
		6218	90	160	30	2	96	71.5	4000	4700	2.15
		6219	95	170	32	2.1	109	82	3700	4400	2.62
		6220	100	180	34	2.1	122	93	3500	4200	3.14
		6221	105	190	36	2.1	133	105	3400	4000	3.7
		6222	110	200	38	2.1	144	117	3200	3800	4.36
		6224	120	215	40	2.1	155	131	2900	3400	5.15
		6228	140	250	42	3	166	150	2500	2900	7.57
		6232	160	290	48	3	185	186	2100	2500	11.7
		6234	170	310	52	4	212	223	20000	2400	14.5
		6236	180	320	52	4	227	241	19000	22000	15.1
		6238	190	340	55	4	255	281	18000	21000	18.2
		6244	220	400	65	4	297	365	15000	18000	30.2
