60BAR10S

Part Number:
d:
D:
B:
High-Speed Angular Contact Thrust Ball Bearings

60BAR10S

Send Inquiry
PDF
Printable Page
Save to Favorites
  • High-Speed Angular Contact Thrust Ball Bearings
  • High-Speed Angular Contact Thrust Ball Bearings

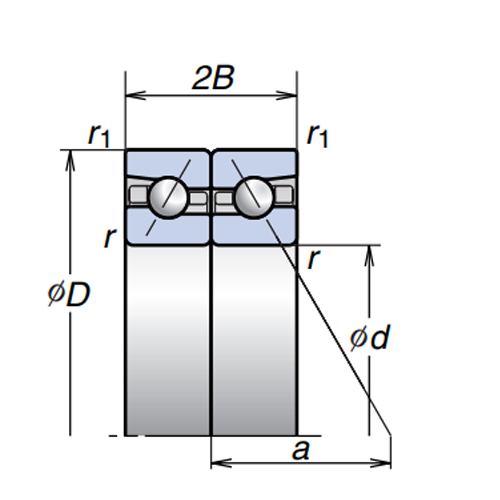

Dimension and Parameters

Bearing :60BAR10S
Dimensiones(mm)
D :60
d :95
2B :33
r(min) :1.1
r1(min) :0.6
Basic Loading Ratings (KN)
Cr :18.9
Cor :38
Permissible axial load(KN) :25.5
Effective load center(a) :30.4
Limiting speeds （rpm）
Grease :9700
Oil :12300
Weight(kg) :0.42
