Designation :29230E

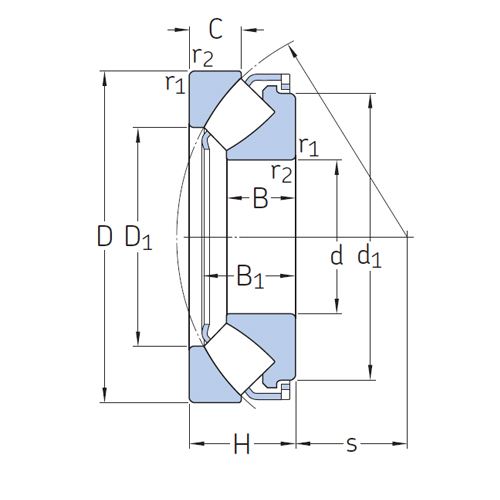

Basic Dimensions
D :150
H :215
d :39
Basic load ratings
dynamic
C :408
static
C0 :1600
Fatigue load limit
Pu :180
Minimum load factor
A :0.24
Speed ratings
Reference speed :1800
Limiting speed :2800
Install dimensions
d1
≈ :200
D1
≈ :176
B :24
B1 :34.3
C :20.5
r1,2
min :1.5
s :82
Abutment and illet dimensions
da
min :180
db1
max :154
db2
max :154
Ha
min :14
Da
max :193
ra
max :1.5
